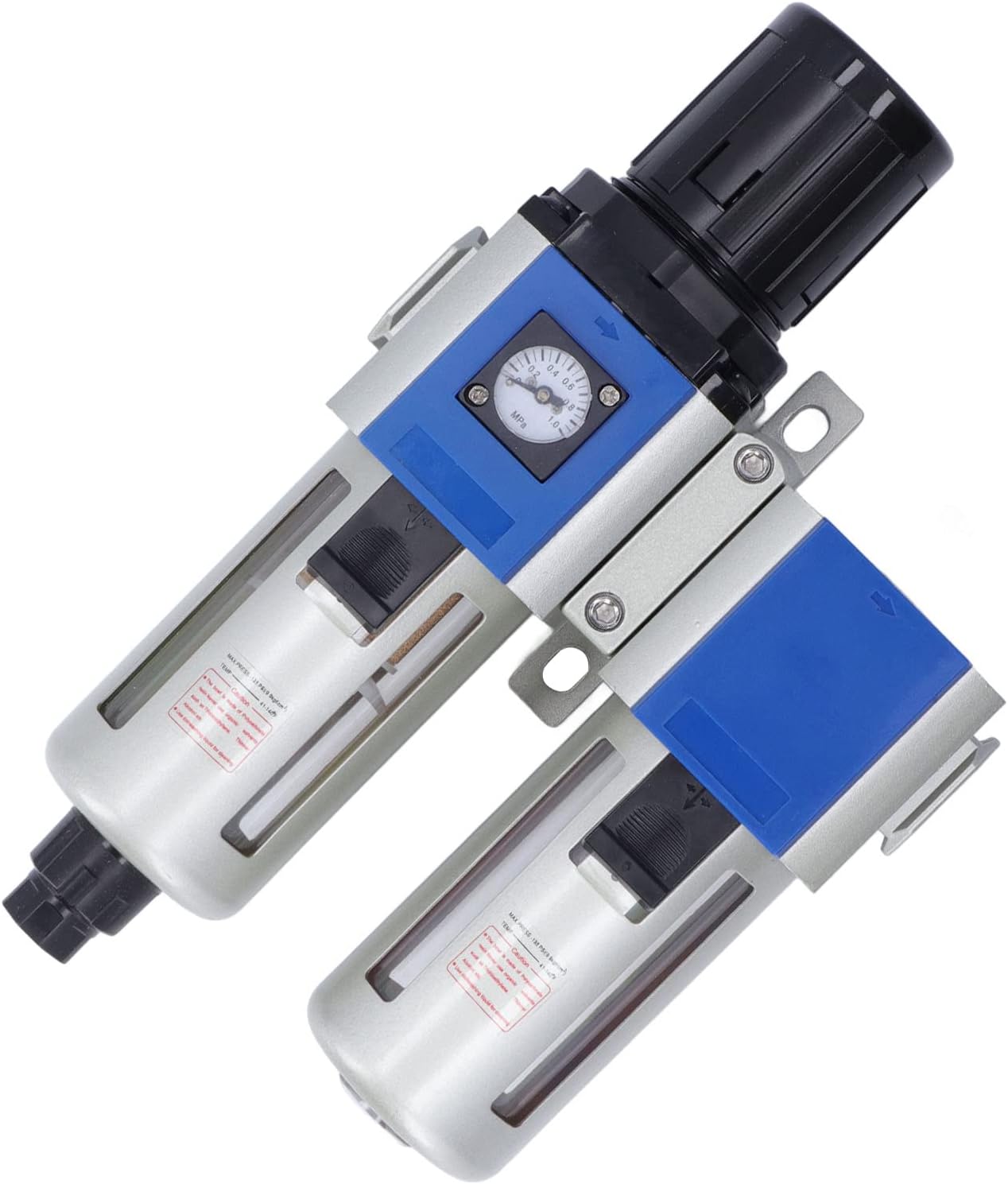

Compressed Air Filter Regulator Lubricator Combo 3 in 1 Unit Professional Grade Pneumatic System Component High Efficiency Water Oil Separator for Industrial Machinery Aluminum (GFC400-10)

Item Type: Compressed Air Filter Regulator Lubricator ComboMaterial: Aluminum alloyModel GFC400-10 GFC400-15 Way of working Air Connecting pipe caliber PT3/8 PT1/2 Filter element accuracy 40μm or 5μm Operating pressure range Automatic and differential pressure drainage type: 0.15-0.9Mpa (20-130Ps); manual drainage type: 0.05-0.9Mpa (7-130Ps) Ensure pressure resistance 1.5Mpa(215Psi) Operating temperature -20℃~70℃ Water filter cup capacity 80CC Oil supply cup capacity 160CC Recommended lubricating oil ISO VG32 or similar oil Components Filter GFR400-10 GFR400-15 Lubricator GFL400-10 GFL400-15Package List：1 x Compressed Air Filter Regulator Lubricator ComboNote:1. Keep the pipeline clean and prolong the service life.2. The bowl body is made of polycarbonate resin. Do not use solvents such as dilution, etc. Use dish soap for cleaning.

• [INDUSTRIAL-GRADE PERFORMANCE] Engineered for demanding environments, this 3-in-1 combo unit delivers professional-grade air treatment with its heavy-duty aluminum alloy construction. The integrated system combines filtration, regulation and lubrication in one compact package, eliminating the need for multiple separate components while ensuring superior durability.
• [SUPERIOR AIR PURIFICATION] Featuring dual-stage filtration with 40μm or optional 5μm precision, this unit effectively removes water, oil and particulate waste materials from compressed air lines. The large polycarbonate bowl provides excellent visibility of collected waste materials while resisting impacts and in industrial settings.
• [PRECISION PRESSURE CONTROL] Maintains consistent air pressure with laboratory-grade accuracy (±1.5% regulation) across the full 0.05-0.9MPa operating range. The sensitive diaphragm mechanism ensures instant response to pressure changes, making it ideal for CNC machines, pneumatic tools and automated production equipment.
• [ADVANCED LUBRICATION SYSTEM] Incorporates a precision metering lubricator with 160cc capacity and adjustable oil feed (0-10 drops/min). Compatible with standard ISO VG32 oils, it automatically proportions lubrication to downstream components, reducing wear and extending tool life by up to 300% in continuous operations.
• [SMART DRAINAGE OPTIONS] Offers maximum flexibility with three drainage configurations: manual purge for controlled maintenance, automatic discharge for hands- operation, and differential pressure activation for energy efficiency. The 80cc collection capacity minimizes maintenance frequency in high-usage environments.
